Stage Lighting

SMD Linear Wash

$480.00
call us more info

Request More Information


Product Overview

Bring Your Sunglasses

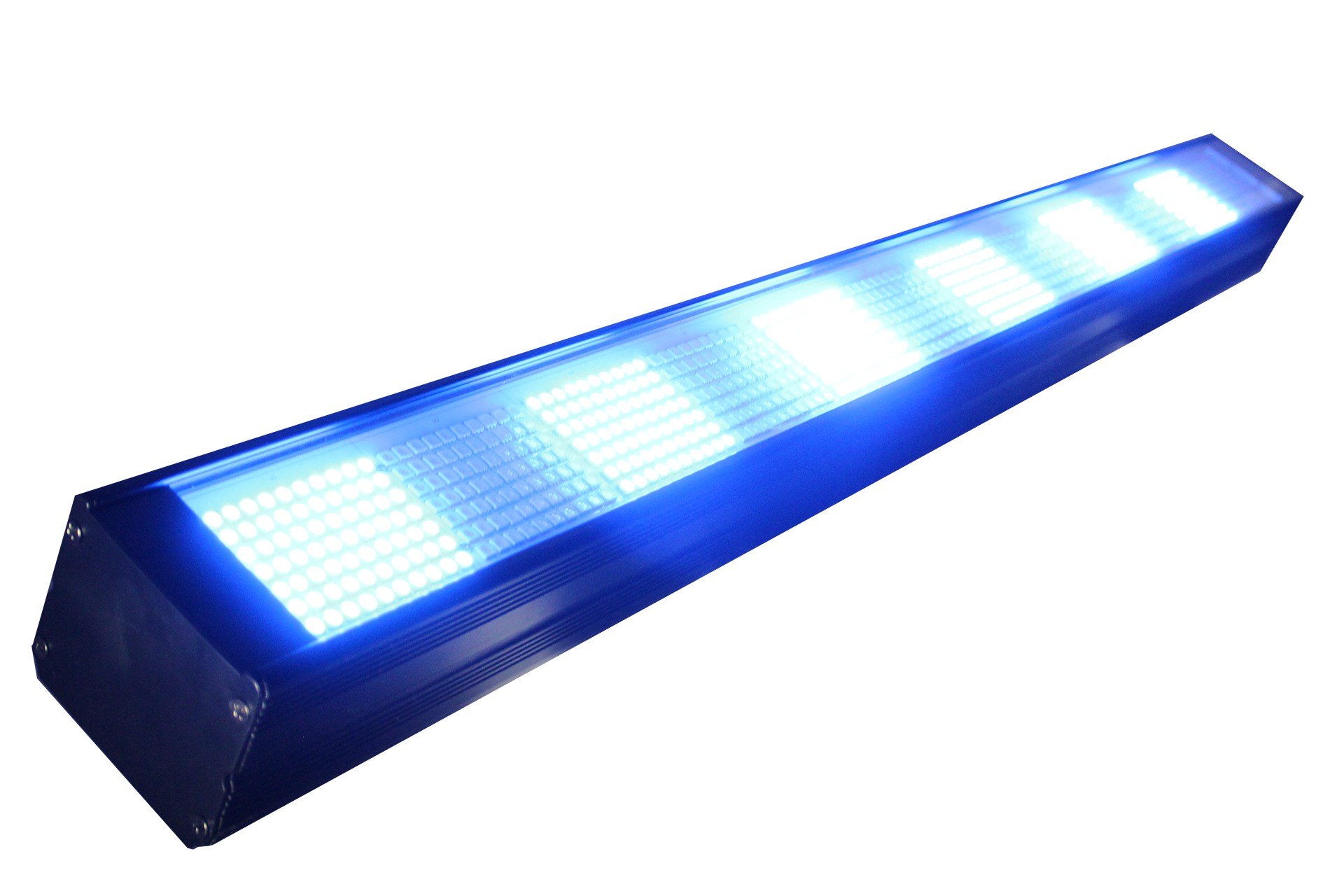

Wow your clients and customers with this unbelievably bright LED wash bar. This fixture utilizes SMD style LEDs to get a significantly brighter light output. What’s even better is the plethora of built in programs and effects you can use to set yourself above the rest.

Perfect for any Sized Venue

Whether it’s for a standard height wall, or the highrise walls of an event center, this light will do the job. 63 diodes per section with 12 sections!

MAIN FEATURES

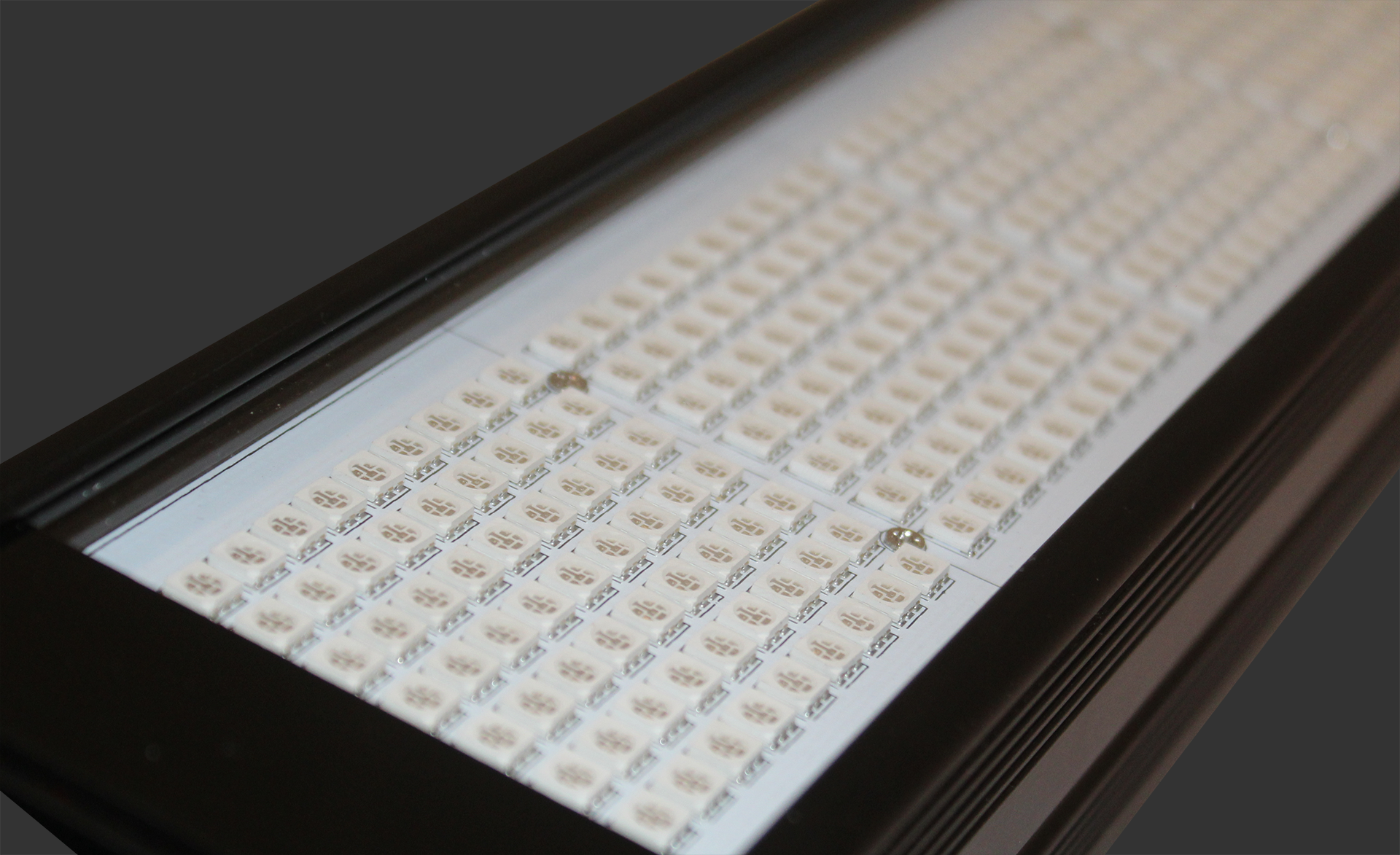

  • SMD5050 LED chip set
  • 12 individually controllable sections
  • Unbelievably bright light output
  • Even linear beam distribution
  • Lightweight Design for easy mounting
  • RGB color
  • 8, 11, 36, and 41 channel modes
  • DMX, Sound Active, Auto, and Manual operation
  • 60 individual preset patterns with hundreds of combination options

PRODUCT SPECIFICATIONS

Type Linear Wash
DMX Type 3 pin IN/OUT
DMX Modes 8, 11, 36, 41 channel
Control Modes DMX 512, Auto, Master/Slave, Sound Active
Light Engine SMD5050
Light Type RGB, 12 sections
Illuminance 1580 lux @ 1m, 480 lux @ 2m
Beam Angle 120 degree
Power Type 120/240V AC
Power Consumption 370W
Power Supply NEMA 5-15P IEC
Height 4.3
Width 38
Depth 4.3
Weight 5.6 lbs
Housing Material aluminum
Housing Color black
Operating Temp -4 - 104 F

DOWNLOADS

SMD5050 Linear Wash Bar, Cut Sheet

Download

SMDwash Onyx Profile

Download
